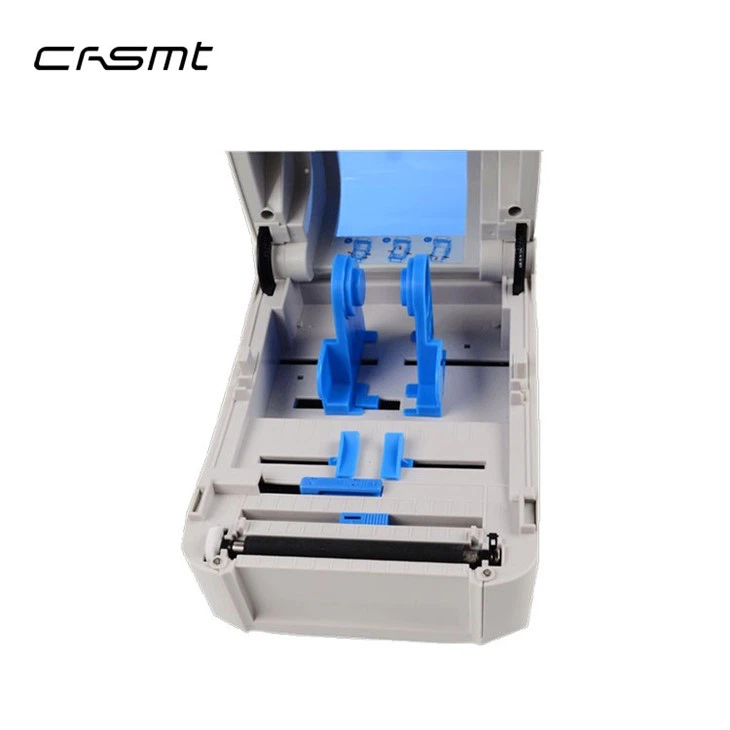

Heat Transfer Label Printer
Model: 1824T or 1834T
Description: Thermal transfer printer, printer thermal transfer, label printer thermal transfer
Key parameter: 120mm paper width (4 inch)
USB+Parallel+Serial, USB+Bluetooth, USB+WiFi
152mm/sec Max.
Description
Features:
• Heat transfer label printer 1824T is a high-end thermal transfer barcode printer
• Heat transfer label printer with high-speed printing, effectively improving work efficiency
• Humanized design of closed cover damping, to avoid accidental hand injury
• Linked paper clamping block, one-handed operation, one-handed operation and one-handed paper change, one-time synchronous paper change
• Heat transfer label printer with a variety of optional interfaces and configurations increase the flexibility of scenarios
• Dual sensor design, automatic paper measurement, penetrating and reflective sensors, more accurate printing, less paper waste, and more energy-saving printing
Specification
|
Model |
1824T |
1834T |
|
Print Method |
Direct thermal & thermal transfer |
Direct thermal & thermal transfer |
|
Command set |
TSPL |
TSPL |
|
Print Resolution |
203 dpi |
300 dpi |
|
Print Speed |
2~6 inch/s (51-152mm/s) |
2~5 inch/s (51-127mm/s) |
|
Print Width |
Max. 104mm (4.09") |
Max. 104mm (4.09") |
|
Print Length |
Max. 2286mm (90") |
Max. 2286mm (90") |
|
Overheat protection sensor |
Support |
Support |
|
Paper detect sensor |
Support |
Support |
|
Black mark detect sensor |
Support |
Support |
|
Head open detect sensor |
Support |
Support |
|
Media end error sensor |
Support |
Support |
|
Memory |
Dram: 8M, Flash: 4M |
Dram: 8M, Flash: 4M |
|
Interface |
USB+Parallel+Serial (Standard) |
USB+Parallel+Serial (Standard) |
|
USB+Bluetooth (Optional) |
USB+Bluetooth (Optional) |
|
|
USB+WiFi (Optional) |
USB+WiFi (Optional) |
|
|
Graphics |
Support BMP/PCX/BAS files downloaded to FLASH/DRAM |
Support BMP/PCX/BAS files downloaded to FLASH/DRAM |
|
Barcode |
CODE128、EAN128、ITF、CODE39、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPC-A+2、UPC-A+5、UPC-E、UPC-E+2、UPC-E+5、CPOST、MSI、MSIC、PLESSEY、ITF14、EAN14、QRCODE |
CODE128、EAN128、ITF、CODE39、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPC-A+2、UPC-A+5、UPC-E、UPC-E+2、UPC-E+5、CPOST、MSI、MSIC、PLESSEY、ITF14、EAN14、QRCODE |
|
Character Size |
Font 0 ~ font 8 |
Font 0 ~ font 8 |
|
Enlargement |
1 ~10 times enlargement in both directions; 0°、90°、180°、270° rotation |
1 ~10 times enlargement in both directions; 0°、90°、180°、270° rotation |
|
Paper Type |
Continuous, black mark, gap, punched hole, Fan fold and more labels |
Continuous, black mark, gap, punched hole, Fan fold and more labels |
|
Paper Width |
Max.118mm, Min.20mm |
Max.118mm, Min.20mm |
|
Paper Diameter |
127mm |
127mm |
|
Paper Thickness |
Max.：0.254mm (10mil), Min.：0.06mm (2.36mil) |
Max.：0.254mm (10mil), Min.：0.06mm (2.36mil) |
|
Paper Roll Core Size |
1inch (25.4mm) |
1inch (25.4mm) |
|
Ribbon OD |
Max.67mm |
Max.67mm |
|
Ribbon Length |
Max. 300m |
Max. 300m |
|
Ribbon Core Size |
1 inch (25.4mm) |
1 inch (25.4mm) |
|
Ribbon Width |
Max.110mm, Min.30mm |
Max.110mm, Min.30mm |
|
Ribbon Rolling Up Method |
Outward Rolling |
Outward Rolling |
|
Rolling Up Method |
Printing side outward rolling |
Printing side outward rolling |
|
Paper out |
Front paper out, tearing-off |
Front paper out, tearing-off |
|
Power supply |
DC24V/2.5A |
DC24V/2.5A |
|
Operation condition |
Temperature: 5～ 40℃, Humidity: 20～ 90% |
Temperature: 5～ 40℃, Humidity: 20～ 90% |
|
Storage condition |
Temperature: -25～ 55℃, Humidity: 20～ 93% |
Temperature: -25～ 55℃, Humidity: 20～ 93% |
|
Weight |
2.5KG |
2.5KG |
|
Dimension |
278*210*180mm |
278*210*180mm |
|
Dimension of Box |
370*260 *235 mm |
370*260 *235 mm |
|
Print Head |
30KM |
30KM |
Applictions:
Heat transfer label printers are mainly used to make heat transfer labels, which are usually used on textiles, clothing, bags, footwear and various other products. Their application scenarios include the following aspects:
Clothing and textile industry: Heat transfer labels can be used to produce brand labels, size labels, washing instruction labels, etc. for identification and information display on clothing.
Manufacturing: Thermal transfer labels can be used to identify and display information on a variety of products such as luggage, footwear, furniture, electronics, and more. These labels can help distinguish different product styles, models and specifications.
Retail industry: Thermal transfer labels can be used for commodity pricing and information display, helping merchants better manage inventory and sales.
Logistics and transportation industry: heat transfer labels can be used to identify and track goods, and play an important role in the logistics and transportation process.
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
| Heat transfer label printer |
4 |
4 pcs/carton |
18 |
54*45*50 |
