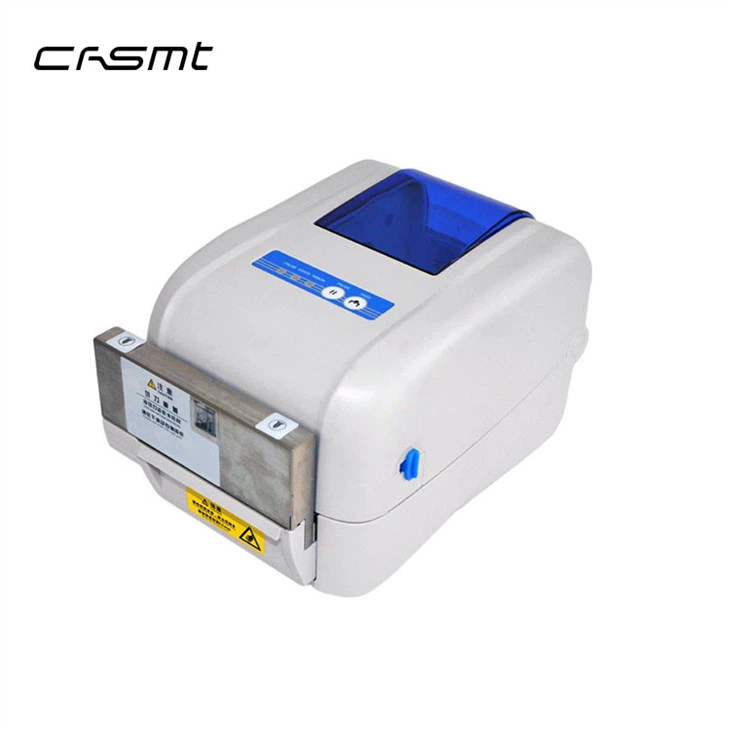

Thermal Transfer Label Printer
Model: 1824TC or 1834TC
Description: Thermal transfer printer, fabric label printer
Key parameter: 120mm paper width (4 inch)
USB+Parallel+Serial
152mm/sec Max.
With auto cutter
Description
Features:
1. Thermal Transfer Label Printer, a unibody design, rugged and durable printer
203 DPI or 300 DPI high print resolution, clear and outstanding.
New mechanism to enable printing smoother.
51~152mm/s high speed batch printing, saving time, enhance work efficiency.
2. Thermal transfer barcode printer, with auto cutter, easy to cut paper, without tearing trouble
4 inch wide format printer with auto cutter.
V-shape steel cutter for cutting labels or fabric quickly.

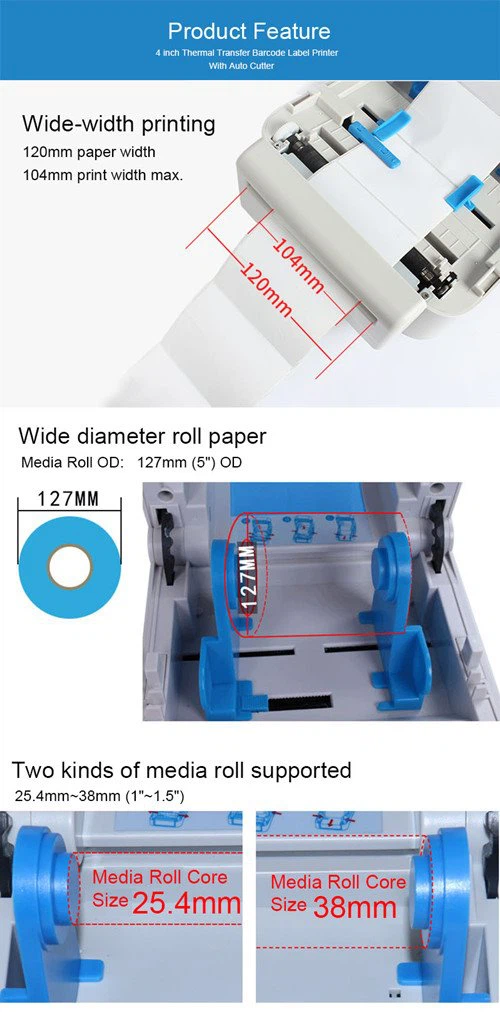

120mm paper width and max.104mm print width, 127mm paper diameter.
3. Thermal Transfer Label Printer, multiple connection ways, directly connect and print

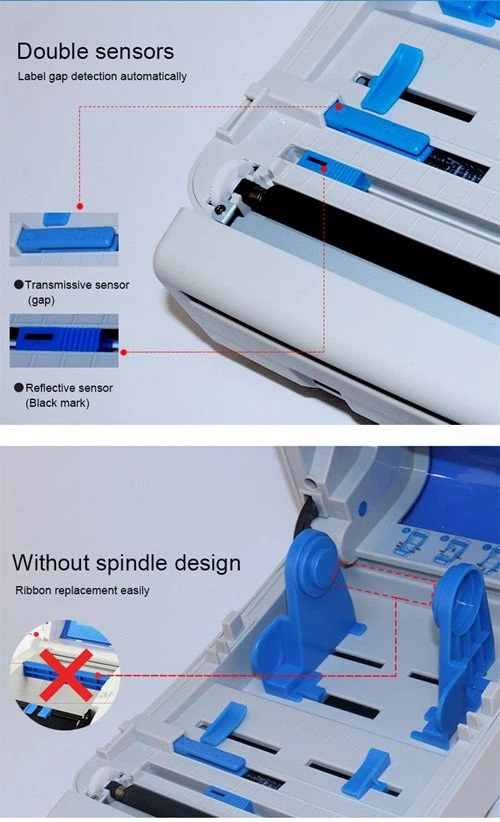

Reflective and transmissive sensors for automatic sensing of paper, print more accurately.
USB + Parallel + Serial, multiple interfaces for different connectivity.
4. Thermal transfer ribbon printer, calm and efficient, suitable for major industries
Thermal Transfer Label Printer 1824TC is easy to deal with various industries, support for Jewelry, food, logistic, clothing, medical ,manufacturing etc industry, especial thermal printing on fabric for laundry label, print entrance tickets and concert tickets etc.
Specification
|
Printing |
Model |
1824TC |
1834TC |
|
Print Method |
Direct thermal and thermal transfer |
||
|
Print Resolution |
203 dpi |
300 dpi |
|
|
Print Speed |
2~6 inch/s (51-152mm/s) |
||
|
Print Width |
Max. 104mm (4.09") |
||
|
Print Length |
Max. 2286mm (90") |
||
|
Dot Density |
203dots/inch (8dots/mm) |
||
|
Dot Size |
0.125x0.125mm (1mm=8dots) |
||
|
Print Head |
50KM |
||
|
Interface |
USB+Parallel+Serial |
||
|
Media Sensor |
Reflective and Transmissive (adjustable) |
||
|
Command set |
TSPL |
||
|
Ribbon |
Ribbon |
OD: Max.67mm，Length: Max. 300m |
|
|
Ribbon Core Size |
1 inch (25.4mm) |
||
|
Ribbon Width |
Max.110mm, Min.30mm |
||
|
Ribbon Rolling Up Method |
Outward Rolling |
||
|
Label Roll |
Type |
Continuous, black mark, gap, punched hole, Fan fold and more labels |
|
|
Rolling Up Method |
Printing side outward rolling |
||
|
Width |
Max.120mm (4.72") Min.20mm (0.78") |
||
|
Thickness |
Max. 0.254mm (10mil) Min. 0.06mm (2.36mil) |
||
|
Roll Core Size |
25.4mm~38mm (1"~1.5") |
||
|
Gap |
Min. 2 mm (0.09") |
||
|
Auto Cutter |
Cutting type |
Full cut |
|
|
Cutting Media Thickness |
0.06~0.25mm |
||
|
Service life |
1500000 |
||
|
Dimensions |
148*63.5*20.3mm |
||
|
BarCode and Fonts |
Enlargement |
1 ~10 times enlargement in both directions; 0°、90°、180°、270° rotation |
|
|
Character Size |
Font 0 ~ font 8 |
||
|
Barcode |
Code39, Code93, Code128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-13, EAN-14, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, china POS, ITF14, QR code |
||
|
Graphics Processing |
Support BMP/PCX/BAS files |
||
|
Editing Software |
Bartender UltraLite |
||
| Power |
Power supply |
Input: AC 110V/240V, Output: DC24V/2.5A, 60W |
|
|
Physical |
Size |
278x210x175mm (WxDxH) |
|
|
Weight |
Approx. 2.1KG |
||

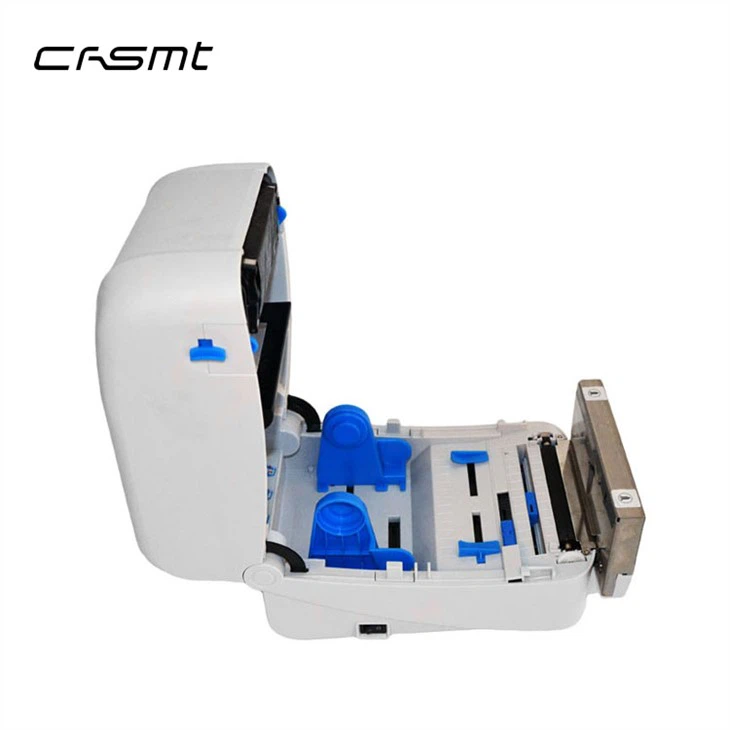

Product Show:
Packing:
|
Product Model |
Weight (kg) |
Packing |
C.G.W (kgs) |
Carton Size (cm) |
| Thermal Transfer Label Printer 1824TC |
5.1 |
3 pcs/carton |
18 |
54*45*50 |
Q and A:
1. About transfer ribbons type for Thermal Transfer Label Printer:
There 3 types for the thermal transfer label printer: Resin ribbons, wax ribbons, wax/resin ribbons.
2. About fabric material for Thermal Transfer Label Printer:
Material of fabric for the transfer printer: Satin tape, nylon tape.
3. About Thermal Transfer Label Printer sample:
Please kindly contact us by informing your requirements, we will recommend the printer model based on your request, and then send the sample by express such as DHL or FedEx or UPS immediately once the sample order confirmed.
4. About OEM/ODM:
We welcome OEM/ODM on your brand or your design, MOQ required based on different models.
5. About after service:
1 year warranty or a ratio of spare parts for RMA. Also we will assist you to solve technical issues and offer latest software for updating.
