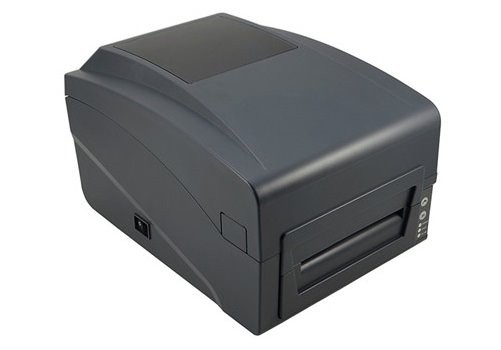

Thermal Transfer Barcode Printer

Model: S-4321 or 1224T
Description: Thermal transfer label printer, thermal wax printer
Key parameter: 120mm paper width (4 inch)
USB+Parallel+Serial
152mm/sec Max.
300DPI or 203DPI for option

Send Inquiry

Description

Features:

1. Desktop label printer, with automatic paper calibration function

Built with 2 sets of gear to drive motor, with capability of handing 300 meters long ribbon and large label roll. Printer inner volume is fit for 5” OD paper roll, if using external paper holder, 8.4”OD industrial grade label roll can be installed.

2. Thermal Transfer Barcode Printer, 3-in-1 Innovative multiple interfaces for different connectivity

Designed for real-time and batch label printing, with standard serial, parallel and USB connection port. Direct thermal printing and thermal transfer printing modes are all in one printer body, various kinds of printing materials can be chose: thermal paper, plain paper, coated paper, silver paper etc.

Specification

Product Model		S-4321	1224T
Printing	Print Method	Direct thermal and thermal transfer
	Print Resolution	300 dpi	203 dpi
	Print Speed	2~6 inch/s (51-152mm/s)
	Max. Print Width	104mm (4.09")
	Max. Print Length	2286mm (90")
	Dot Density	203dots/inch (8dots/mm)
	Dot Size	0.125x0.125mm (1mm=8dots)
	Print Head	50KM
	Interface	USB+Parallel+Serial
	Commands	TSPL, ZPL
Ribbon	Ribbon OD	Max.67mm
	Ribbon Length	Max.300m
	Ribbon Core Size	1 inch (25.4mm)
	Ribbon Width	Max.110mm, Min.30mm
	Ribbon Rolling Up Method	Outward Rolling
Label Roll	Roll OD	127mm (5")
	Type	Continuous, black mark, gap, punched hole, Fan fold and more labels
	Rolling Up Method	Printing side outward rolling
	Width	Max.120mm (4.72") Min.20mm (0.78")
	Thickness	Max. 0.254mm (10mil) Min. 0.06mm (2.36mil)
	Roll Core Size	25.4mm~38mm (1"~1.5")
	Gap	Min. 2 mm (0.09")
	Label Length	10~2286mm (0.39"~90")
Software	Editing Software	BarTender
	Driver	Windows 2000、XP、Vista、Win7、Win8、Windows Server 2003 & 2008 etc.
	DLL	Windows 2000、XP and Vista
Character font	Enlargement & Rotation	1 ~10 times enlargement in both directions; 0°, 90°, 180°, 270° rotation
	Character Size	Font 0 ~ font 8
Barcode type	Barcode	Code39, Code93, Code128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-13, EAN-14, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, china POS, ITF14, QR code
Picture	Graphics Processing	Support BMP/PCX/BAS files
Power	Power supply	Input: AC 110V/240V, Output: DC24V/2.5A, 60W
Physical	Printer Dimensions	278x210x175mm (WxDxH)
	Printer Weight	Approx. 2.1KG
